Fusion Splicer INNO VIEW3 PRO ORIGINAL

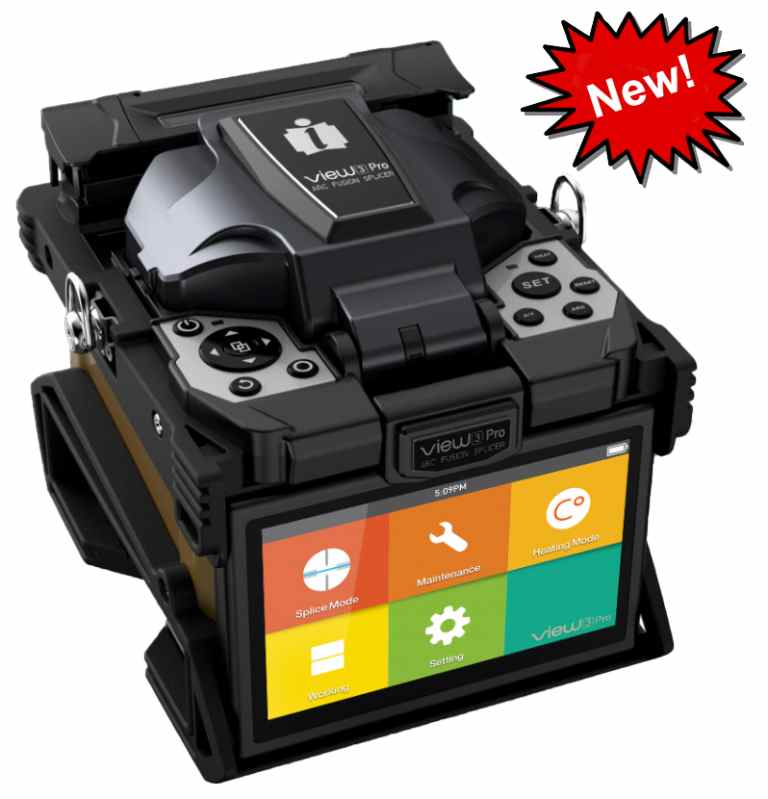

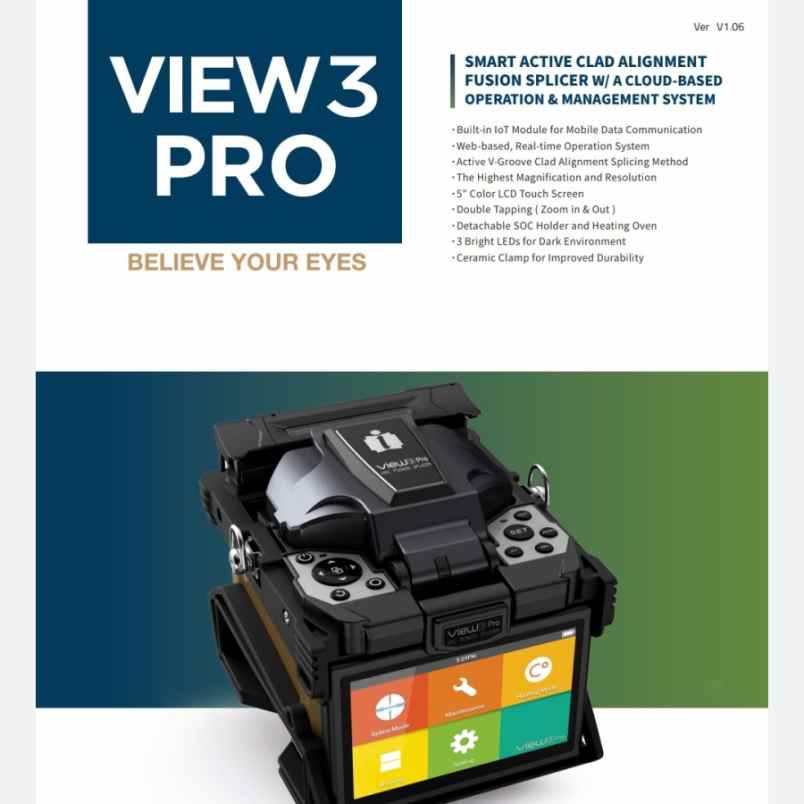

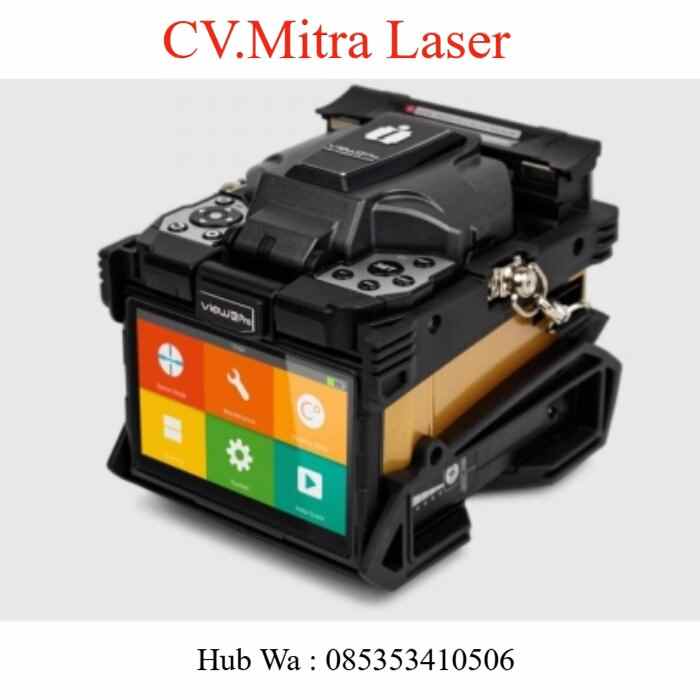

INNO Instrument VIEW3 PRO Smart Active Clad Alignment Fusion Splicer
The INNO Instrument VIEW3 PRO Smart Active Clad Alignment Fusion Splicer is a highly advanced device designed for precise fiber optic splicing.
Key Features:
• Alignment Technology: Advanced four-motored alignment for precise active cladding alignment.
• Display: 5-inch high-resolution color LCD touch screen with an intuitive graphical user interface (GUI).
• Magnification: World’s highest magnification of 520x for detailed fiber inspection.
• Lighting: Equipped with three LED lights to facilitate work in dark environments.
• Splicing Time: Approximately 8 seconds.
• Heating Time: Approximately 15 seconds.
• Typical Loss:
o Single Mode (SM): 0.03dB
o Multi-Mode (MM): 0.01dB
o Dispersion Shifted (DS): 0.05dB
o Non-Zero Dispersion Shifted (NZDS): 0.05dB
o G.657: 0.03dB
Additional Features:
• IoT & GPS Capabilities: For enhanced connectivity and tracking.
• Remote Control: Allows for remote operation and monitoring.
• Active V-Grooves: Ensures stable and precise fiber positioning.
• Asset Management: Comprehensive management through the View Pro Manager software.
Physical Specifications:
• Dimensions: 151mm (H) x 149mm (W) x 177mm (D)
• Weight: 2.21kg with battery, 1.85kg without battery
Environmental Specifications:
• Operating Temperature: -10°C to 50°C
• Storage Temperature: -40°C to 80°C
• Humidity: 0 to 95% (non-condensing)
Power Supply:
• Battery: Rechargeable lithium-ion battery
• Battery Capacity: Typically supports up to 200 splicing and heating cycles per charge
Connectivity:
• USB Ports: For data transfer and software updates
• Wi-Fi: For wireless connectivity and remote access
This fusion splicer is designed to provide high precision and efficiency, making it suitable for various fiber optic splicing applications.
