Cv. Mitra Laser Jual Fusion Splicer Splicing Tekcn Tc-400

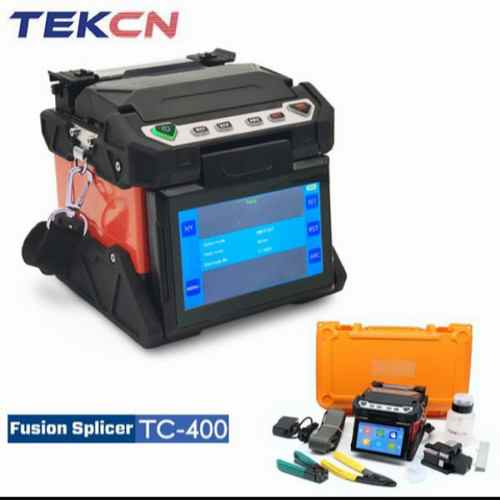

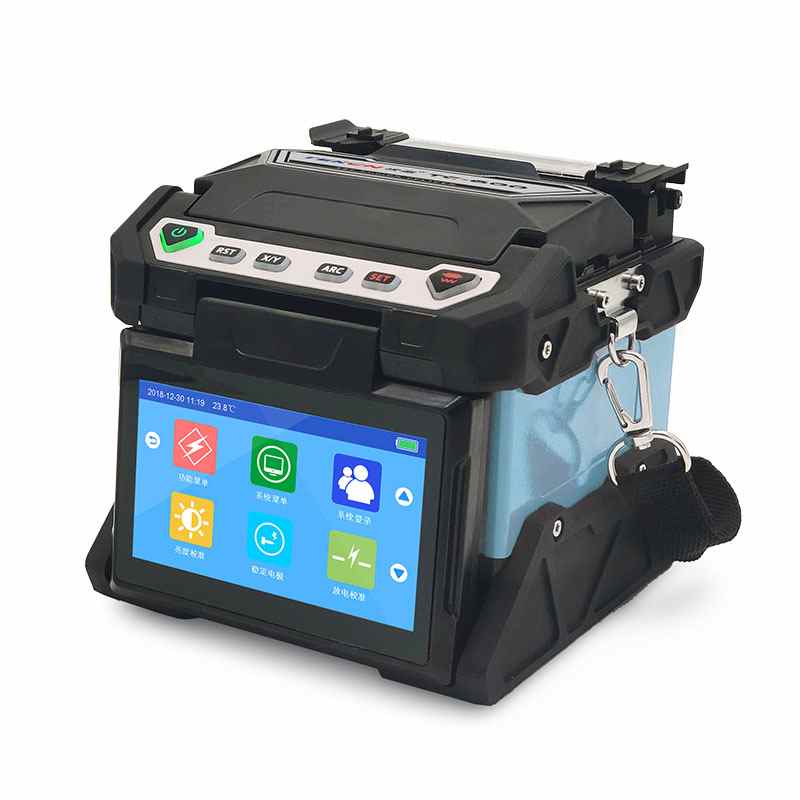

Fusion Splicer TEKCN TC400 Splicing Mesin FO
Feature :
Splicing time 7 sec., heating time 9 sec.
Up to X/Y 760x magnification
Over 250 times splicing and heating
Compact and lightweight
Full HD capacitive touchscreen
Water-Proof
Dust-Proof
Anti-Shock
High Temperature Resistance
Low Loss Stable Performance
Button & Touch Screen

Speicifications :
Fiber alilgnment : core to core alignment
Applicable fibers : Single / SMF (G.652/657), MMF (G.651), DSF (G.653), NZDSF (G.655), BI(G.657)
Cladding dia. / Sheath dia. : 80-150μm / 100-1000μm
Cleave length : 5mm to 16mm with sheath clamp
Splice mode : Total 100 modes, supports self-defined mode and parameter
Typical splice time : 7 sec. SM FAST
Typical splice loss : 0.02dB (SM), 0.01dB (MM), 0.04dB (DSF) ,0.04dB (NZDS) and 0.02dB(BI)
Return loss >>60dB
Heating mode : Max. 20
Heating time : 9 sec.
Applicable protection sleeve : 10~60mm
Splice result storage : Last 20,000 splices
Splice image storage : Max.800
Viewing methods : 2 axis CMOS camera with 4.73” HD color capacitive touchscreen
Magnification : Supports X / Y or both X and Y simultaneously, maximum up to 760X magnification
Wireless connectivity : GPS positioning and tracking system through inbuilt SIM card
Port : MicroSD and USB port for software upgrade / data management
Electrode life : Typical 5000 splices
Battery compacity : 4000mAh battery, more than 250 times splicing and heating; Standard charging time 4 hours (up to 80% electric quantity in 2 hours)
Power supply : AC100-240V, 50/60Hz
Tension test : 2N
Operating condition : Altitude : 0 to 5,000m above sea level, Wind : 15m/sec Temperature : -10 to 50deg C, Humidity : 0 to 95%RH
Storage condition : Humidity : 0 to 95%RH Temperature : -10 to 80deg C(Battery: -10 to 40deg C)
Size / weight : 133W x 144D x 133H (mm) / 1.5kg (1.8kg including battery)
