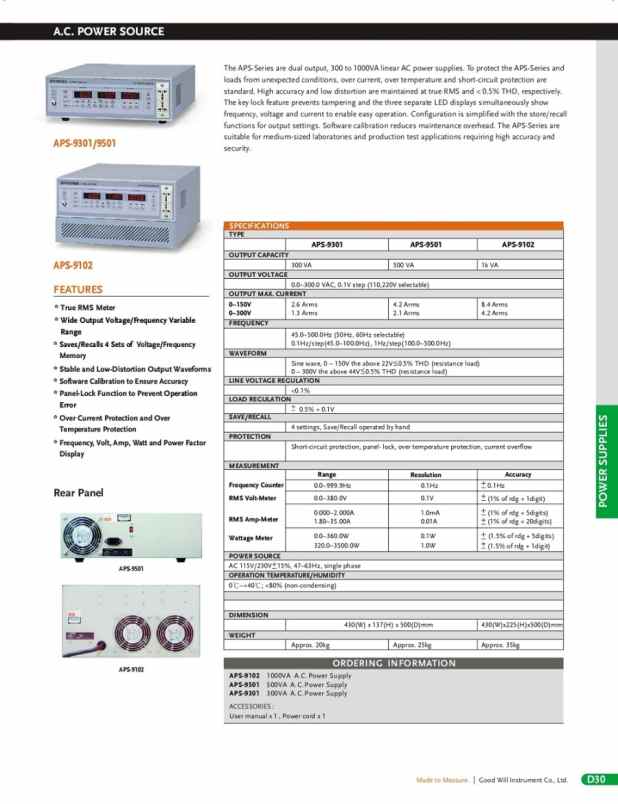

GW Instek APS-9301 A.C. Power Source

Features
• True RMS Meter
• Wide Output Voltage / Frequency Variable Range
• Save/Recall 4 Sets of Voltage/Frequency Memory
• Over Current Protection and Over Temperature Protection
• Stable and Low-Distortion Output Waveforms
• Software Calibration to Ensure Accuracy
• Panel-Lock Function to Prevent Operation Error
• Frequency,Volt,Amp,Watt and Power Factor Display

Specifications
Output Capacity : 300VA
Output Voltage : 0.0 - 300.0VAC, 0.1V step (110,220V selectable)
Output Max. Current :
*0 – 150V : 2.6A RMS
*0 – 300V : 1.3A RMS
Frequency : 45.0 - 500.0Hz (50Hz, 60Hz selectable); 0.1Hz/step(45.0 - 100.0Hz), 1Hz/step(100.0 - 500.0Hz)
Waveform : Sine wave, 0 - 150V the above 22V 0.5% THD (resistance load); 0 - 300V the above 44V 0.5% THD (resistance load)
Line Voltage Regulation : <0.1%
Load Regulation : ±0.5% +0.1V
Save/Recall : 4 settings, Save/Recall operated by hand
Protection : Short-circuit protection, panel- lock, over temperature protection, current overflow
Measurement :
*Frequency Counter :
- Range : 0.0 – 999.9Hz
- Resolution : 0.1Hz
- Accuracy : ±0.1Hz
*RMS Volt-Meter :
- Range : 0.0 – 380.0V
- Resolution : 0.1HV
- Accuracy : ±0(1% of rdg + 5digits)
*RMS Amp-Meter :
- Range : 0.000 – 2.000A; 1.80 – 35.00A
- Resolution : 1.0mA; 0.01A
- Accuracy : ±(1% of rdg + 5digits); ±(1% of rdg +20digits)
*Wattage Meter :
- Range : 0.0 – 360.0W; 320.0 – 3500.0W
- Resolution : 0.1W; 1.0W
- Accuracy : ±(1.5% of rdg + 5digits); ±(1.5% of rdg + 1digits)
Power Source : AC 115V/230V ±15%, 47 – 63Hz, single phase
Operating Temperature/Humidity : 0°C to +40°C; <80% (non-condensing)
Dimension : 430(W) x 137(H) x 500(D)mm
Weight : Approx. 20kg
Accessories : User manual x 1, Power cord x 1
