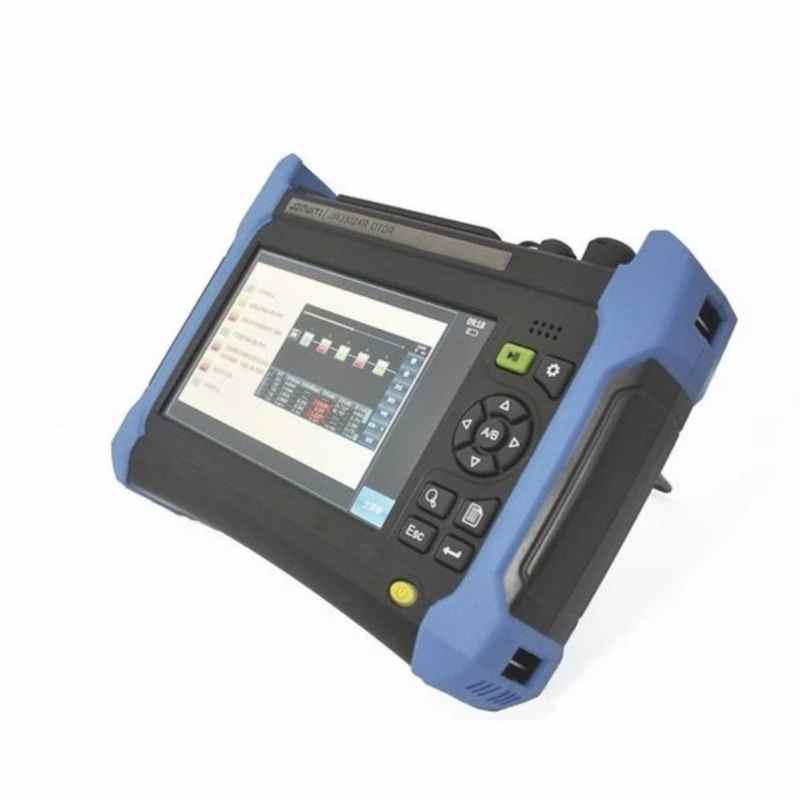

OTDR Joinwit JW3302xr ORIGINAL
OTDR Joinwit JW3302XR adalah meteran Cerdas untuk mendeteksi sistem komunikasi serat. Dengan mempopulerkan konstruksi jaringan optik di kota dan negara, pengukuran jaringan optik menjadi pendek dan menyebar; 3302XR dirancang khusus untuk aplikasi semacam itu. Ini ekonomi, memiliki kinerja yang luar biasa.
JW3302XR banyak digunakan dalam proyek internet FTTH, jaringan optik lokal, jaringan optik area metropolitan, pengerjaan jaringan PON, penempatan, perawatan, verifikasi dan pengajaran & riset materi optik.
Spesifikasi OTDR Joinwit JW3302XR
Display
7 inch TFT-LCD with LED backlight (touch screen function is optional)
Interface
USB, MICRO USB , 10M/100M, Ethernet, earphone and micro SD
Power Supply
10V(dc), 100V(ac) to 240V(ac), 50~60Hz
Battery
7.4V(dc)/6.8mAh lithium battery (with air traffic certification)
Operating time
12 hours, Telcordia GR-196-CORE
Charging time
<4 hours (power off)
Backlight off
Disable/1 to 99 minutes
Auto shutdown
Disable/1 to 99 minutes
Operating temperature and humidity:
-10~+50, 95% (non-condensation)Storage temperature and humidity: -20~+75, 95% (non-condensation)Proof: IP65 (IEC60529)
Spesifikasi teknis Joinwit JW3302XR
Maximum dynamic range
See the “Technical specifications for each standard
module of OTDR” for more information.
Ranging accuracy
±(0.75 + sample interval + 0.0025% × range)
(excluding the refractivity placement error) (m)
Ranging resolution
0.05, 0.1, 0.2, 0.5, 1, 2, 4, 8, 16 and 32m
Test range
0.4, 0.8, 1.6, 3.2, 6.4, 16, 32, 64,
128, 256 and 512km (mono-mode);
0.4, 0.8, 1.6, 3.2, 6.4, 16 and 32km
(850nm multi-mode)
Testing PW
3, 5, 10, 30, 80, 160, 320,
640, 1280, 5120, 10240 and 20480ns;
3, 5, 10, 30, 80, 160, 320,
640 and 1280ns(850nm multi-mode)
Maximum number of
256k
sampling points
Linearity
0.03dB/dB
Loss resolution
0.001dB
Refractivity setting range
1.00000 ~ 1.99999(step: 0.00001)
Range unit
km, m, thousand feet, feet
Display
800×480, 7-inch TFT color LCD
(a capacitive touch screen in
the standard configuration,
and a resistive touch screen optional)
Optical output interface
FC/UPC (standard configuration, with LC/UPC, SC/UPC
and ST/UPC optional)
Interface language
Simplified Chinese, English,
Russian and Korean available
(contact the office for other language support)
External interfaces
USB, Micro-USB, 10M/100M Ethernet,
earphone and Micro SD
Power supply
AC/DC adapter: AC100V~240V,
50/60Hz and 1.5A; DC: 17V±3V(2A)
Internal Li battery: 11.1V, 6800mAh,
battery operating time: 8h
Power consumption
10W
Dimensions
30*27*15cm
Weight
About 1.8kg
Environmental adaptability
Operating temperature: -10℃~+50℃
(battery charging: 5℃~40℃)
Storage temperature: -40℃~+70℃
(battery: -20℃~60℃)
RH: 5% ~95%, no condensation.
