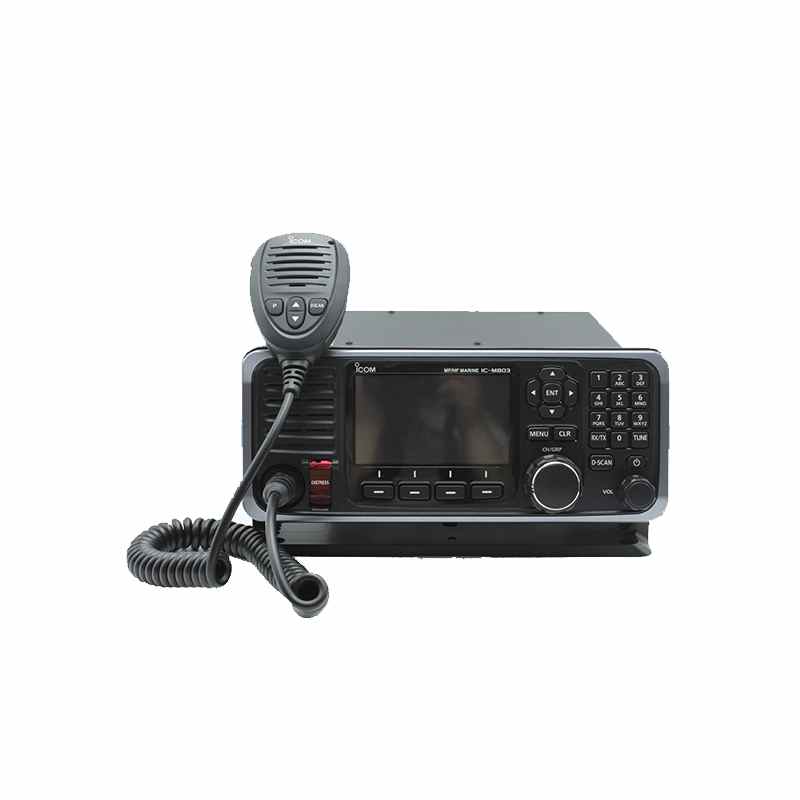

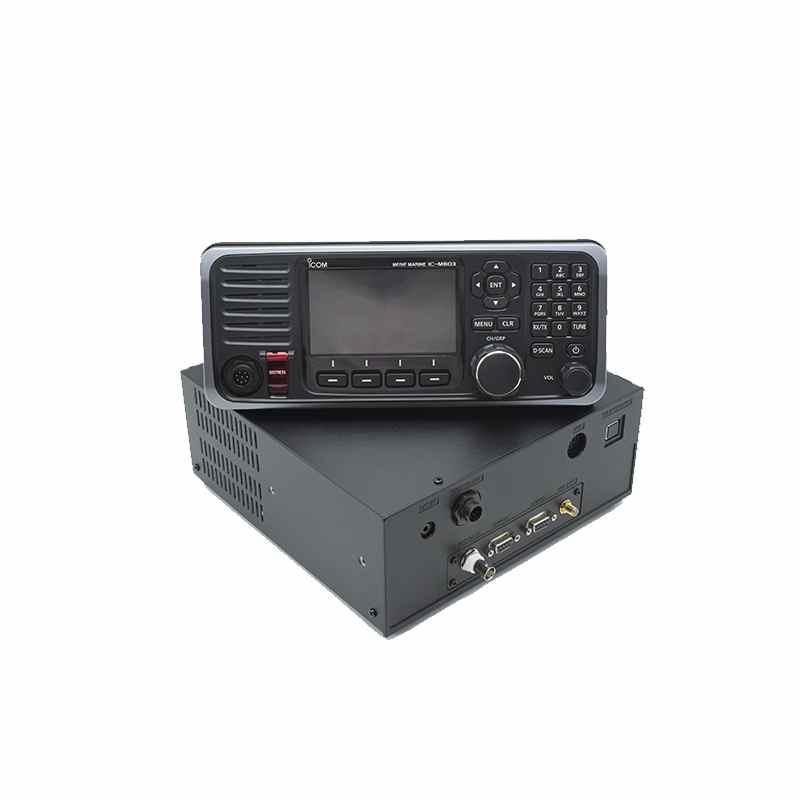

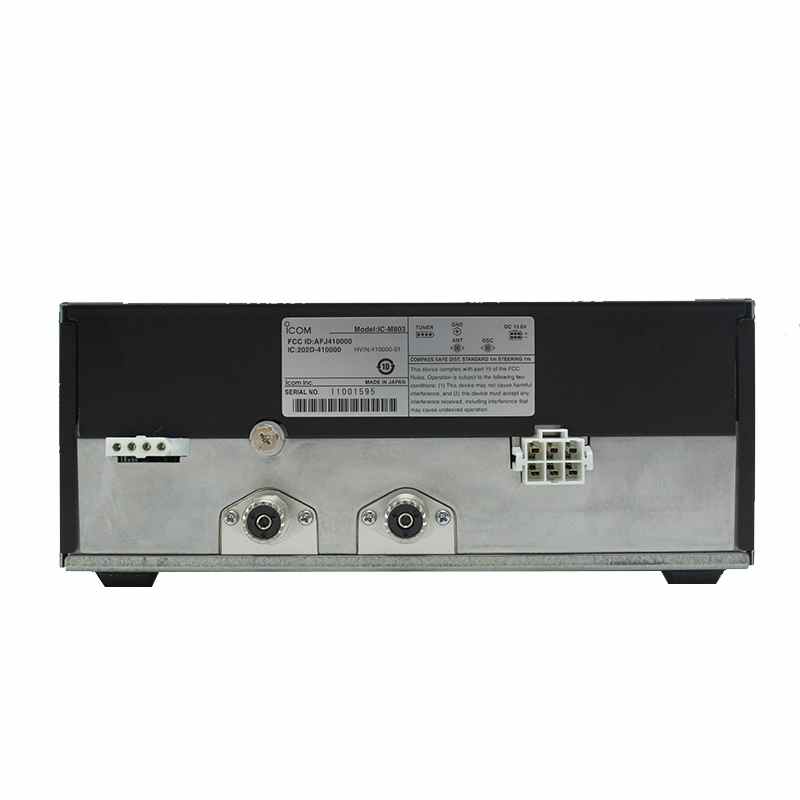

ICOM IC M803 Marine Single Side Band

ICOM IC-M803 Marine Single Side Band
============================================================
Features

• Large Color Display
• Intuitive User Interface
• Dedicated DSC Scanning
• Emergency Distress Button
• Dedicated DSC Scanning
• Two Minute Memory Instant Replay Memory

============================================================
Specifications
General
Frequency coverage

• Rx : 500 kHz 29.9999 MHz (Continuous)
• Tx : . MHz
• DSC : MHz

Mode

• Tx/Rx : J3E (USB, LSB), J2B (AFSK), F1B (FSK), A1A (CW), H3E* (AM) (* H3E receive only)
• DSC : J2B

Antenna impedance : 50 (unbalanced)
Usable temperature range : -20 C to +55 C
Frequency stability

• Tx/Rx : 10 Hz (below 29.999 MHz)
• DSC : 10 Hz

Power supply requirement : 13.6V DC 15% (Negative ground)
Current drain (at 13.6V DC) :

• Receive : Less than 3.0 A (Maximum audio output)
• Transmit : 30A (Maximum output power)

Dimensions (Projections not included) W H D :

• Main unit : mm
• Controller : mm

Weight

• Main unit : 4.41 kg
• Controller : 760 g

Transmitter
Output power : W PEP (selectable)
Spurious emissions : Less than -62 dB (Peak output power)
Carrier suppression : More than 40 dB (Peak output power)
Unwanted sideband suppression : More than 55 dB (Peak output powerwith 1500 Hz AF Input)
Microphone impedance : 600
Receiver
DSC Sensitivity (J2B) :

• 6 dB V emf (at 20 dB SINAD)
• 8 dB V (at 10 dB S/N)
• 6 dB V emf (at 1% BER)

Spurious response
Tx/Rx : More than 70 dB ( MHz)
DSC : More than 70 dB
Audio output power : 4.0W at 10% distortion with a 4 load
Clarity variable range : 150 Hz
Supplied Accessories

• Remote controller
• DC power cable
• Mounting bracket kits
• Remote control cable (5 m, 16.4 ft)
• GPS antenna (5m, 16.4 ft cable)
• ACC plugs
• Microphone, HM-214H
• Microphone hanger
• Spare fuses

===========================================================
