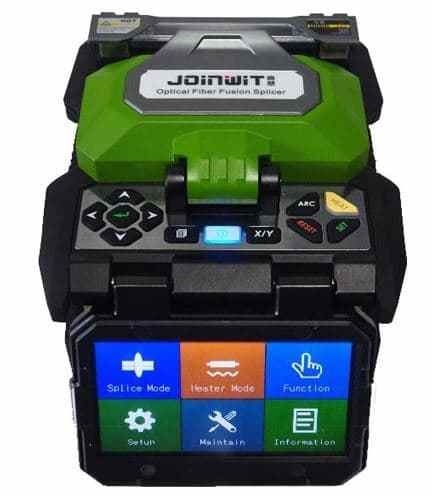

Mitra Laser Jual Fusion Splicer Joinwit JW4106S

CV.Mitra Laser Supplier Fusion Splicer Joinwit JW4106S, Jual Fusion Splicer Joinwit JW4106S, Cari Fusion Splicer Joinwit JW4106S, Harga Fusion Splicer Joinwit JW4106S, Spesifikasi Fusion Splicer Joinwit JW4106S
Fusion Splicer Joinwit JW4106S tipe terbaru dari Joinwit dengan ukuran lebih kecil proses penyambungan lebih cepat dan sudah Touchscreen.
Features:
5 inches high Resolution colorful LCD display
Average splice time :7 second
Average tube-heat time :18 second
Lithium battery: up to 180 times of continuous splice and heat
Simultaneous X and Y views wi th 180 times magnification
New developed technology providing wind and dust resistance
USB Port
Storing 6.000 groups of splice results.
Multipurpose optical fiber fixture(Such as: Rubberinsulated
wire, fiber optic patch cord, bare fiber)
Specifications:
MODEL JW 4106S
Applicable Fibers SM, MM, NZ-DS, EDF ,Pigtail, Rubber-insulated wire Series
Average Splice Loss 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF)
Return Loss 60dB
Tension Test 2.0N(200gf)(Standard)
Splicing Program 50 groups
Protection Sleeve Length 20mm, 40mm, 60mm
Language Chinese, English
Environmental Conditions -10 ~ +50 (operation temperature),0 ~95% RH(humidity), 0 ~5000m(altitude)
Power Supply AC adaptor: 100 ~ 240V input voltage, 50/60Hz; 12V, 5A output voltage(DC)
DC adaptor: 1.1V, 5.2Ah, full charging time is approx. 2.5h.
Dimensions WHD=120mm130mm154mm
