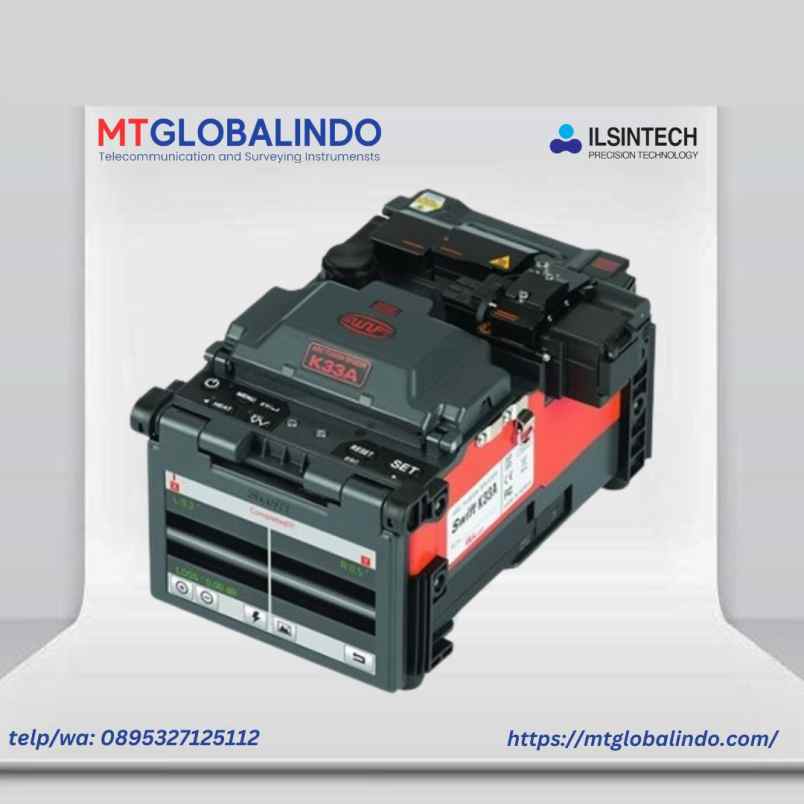

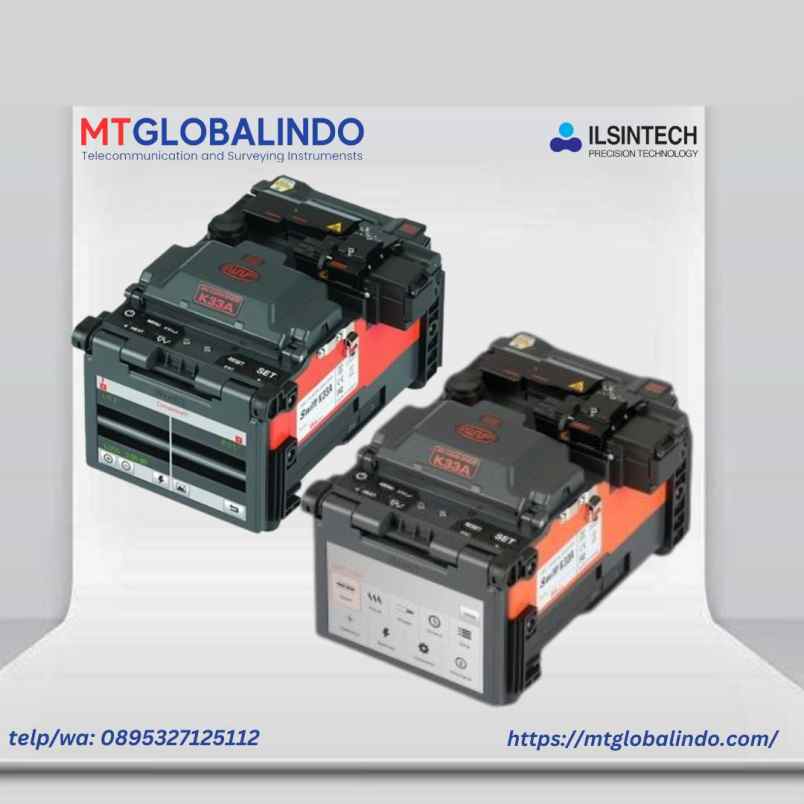

Ilsintech Swift K33A
baru, splicer penyelarasan inti IPAAS premium menawarkan sistem All-In-One eksklusif kami yang memberikan kemampuan kerja terbaik, dan integrasi 5 fungsi ke dalam satu unit (pengupasan, pembersihan, pembelahan, penyambungan, dan perlindungan). Penyambung serat yang ringkas dan kokoh ini sangat ideal untuk sirkuit optik jarak menengah dan panjang, LAN, CATV, FTTx. Dengan bilah berputar yang memungkinkan hingga 77.000 belahan, K33A menggabungkan daya tahan tahan lama dengan kinerja presisi tinggi.
Fitur dan Keuntungan
ROTATING BLADE LIFE UP TO 77,000 cleaves
ELECTRODE LIFE UP TO 18,000
Remote maintenance via internet
The fusion splicer with All-in-One system provides the best workability with integrated 5 functions in one unit (stripping, cleaning, cleaving, splicing, and protecting)
No scratches on fiber by thermal stripping (extended tensile of fiber strength by 3kg more)
Wide 127mm (5.0 in) color LCD monitor with electrostatic touch screen & bidirectional operation system
Powerful lithium polymer battery with large capacity (6000mAh)
Resistance to shock, dust, and water
Compatible with Fusion Splice-on Connector (FSOC) in accordance with the industry standard
Rotating blade allows up to 110,000 cleaves
Spesifikasi
Category
Description
Ilsintech Swift K33A
Fiber alignment
IPAAS Core Alignment
Applicable type of fibers
SM (G.652); MM (G.651); DS (G.653); NZDS (G.655); SM (G.657 A1,A2/B2,B3); SM (G.654 E)
Fiber count
Single fiber
Applicable fiber dimensions
Cladding diameter: 80~150㎛, Coating diameter: 100㎛~3mm
Fiber setting and cleaved length
250㎛,: 5-16mm; 900㎛: 8-16mm
Splicing modes
Splice mode: 300, Heat mode: 100, Strip mode: 50
Typical splice loss
SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB
Return loss
> 60dB (typical)
Splicing time
Typical 6 sec. (Quick Mode)
Sleeve heating time
9 sec. (IS-45 sleeve, IS-45 mode), 13 sec. (IS-60 sleeve, IS-60 mode)
Applicable protection sleeve
40mm or 60mm (fiber)/28mm or 32mm (connector)
Storage of splice result
The last 10,000 results to be stored in the internal memory (image 10,000 results)
Tension test
2N/4.4N (Option)
Operating condition
Altitude: 0-5,000m above sea level, Temperature: -10ºC ~ 50ºC (-14ºF ~ 122ºF); Humidity: 0~95%;
Wind: 15m/s, non-condensing, dust proof, water proof, shock proof
Storage condition
Temperature: -40ºC~ 80ºC (-40ºF ~ 176ºC); Humidity: 0~95%
Dimension
136(W) x 215(L) x 137(H) mm (excluding bumper)
Weight
2.45kg (including battery)
Viewing method and display
Two CMOS cameras and 127mm (5.0 in) color LCD monitor with electrostatic touch screen
Fiber view and magnification
X/Y: 200X; Max: 400X
Power supply
100~240V AC
No. of splice cycles with battery
Typical 282 cycles (6000mAh)
Electrode life
Up to 18,000 splices
Blade life
Up to 77,000 cleaves
Terminals
USB, external power (DC 12V available for car cigar jack)
